Fire Alarm & Detection

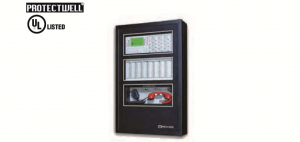

INTELLIGENT ADDRESSABLE FIRE ALARM SYSTEM

Description:
The PTW-3300 is an intelligent Fire Alarm Control Panel designed for medium- to large-scale facilities. Fire emergency detection and evacuation are extremely critical to life safety, and the PTW-3300 is ideally suited for these applications. The PTW-3300 is part of the ONYX Series of products. The PTW-3300 is ideal for virtually any application because it features a modular design that is configured per project requirements. With one to ten Signaling Line Circuits (SLCs), the PTW-3300 supports up to 3,180 intelligent addressable devices. Information is critical to fire evacuation personnel, and the PTW-33OO’s large 640-character Liquid Crystal Display (LCD) presents vital information to operators concerning a fire situation, fire progression, and evacuation details. A host of other options are available, including single- or multichannel voice; firefighter’s telephone; LED, LCD, or PC based graphic annunciators; fire or integration networking; advanced detection products for challenging environments, and many additional options.

Description:

The PTW-3300 is an intelligent Fire Alarm Control Panel designed for medium- to large-scale facilities. Fire emergency detection and evacuation are extremely critical to life safety, and the PTW-3300 is ideally suited for these applications. The PTW-3300 is part of the ONYX Series of products. The PTW-3300 is ideal for virtually any application because it features a modular design that is configured per project requirements. With one to ten Signaling Line Circuits (SLCs), the PTW-3300 supports up to 3,180 intelligent addressable devices. Information is critical to fire evacuation personnel, and the PTW-33OO’s large 640-character Liquid Crystal Display (LCD) presents vital information to operators concerning a fire situation, fire progression, and evacuation details. A host of other options are available, including single- or multichannel voice; firefighter’s telephone; LED, LCD, or PC based graphic annunciators; fire or integration networking; advanced detection products for challenging environments, and many additional options.

	Specifications:
Primary input power, AMPS-24 :	120 VAC, 50/60 Hz, 3.0 amps. AMPS-24E: 220/240 VAC, 50/60 Hz, 1.5 Amps.
Total output 24 V power :	4.5 A in alarm.*
General purpose power :	1.0 A.
Battery charger range :	25 AH – 200 AH. Use separate cabinet for batteries over 25 AH.
Float Rate	27.6 V.
Temperature and humidity ranges :	This system meets NFPA requirements for o peration at 0°C to 49C (32 F to 120 F); and at a relative humidity (noncondensing) of 85% at 30C (86°F) per NFPA, and 93% ° 2% at 32°C 2°C (89.6°F 1.1°F) per ULC. However, the useful life of the system’s standby batteries and the electronic components may be adversely affected by extreme temperature ranges and humidity. Therefore, it is recommended that this system and all peripherals be installed in an environment with a nominal room temperature of 15°C to 27°C (60°F to 80°F).

MODEL: PW-300T

SERIES INTELLIGENT THERMAL (HEAT) DETECTORS

Specifications:
ASIC (PTW-3300, AFC-600) and classic CLIP system (AFP-100, AFP-200, AFP-300, AFP-400, AFC-600, AFP1010, AM2020, and PTW-3300) compatible. Rotary, decimal addressing (1 – 99 on current classic s ystems, 1 – 159 on ASIC systems). Two-wire SLC connection. Visible LEDs “blink” every time the unit is addressed. 360°-field viewing angle of the visual alarm indicators (two bicolor LEDs). LEDs blink green in Normal condition and turn on steady red in Alarm. Integral communications and built-in device-type identification. Remote test feature from the panel. Built-in functional test switch activated by external magnet.

Specifications:

ASIC (PTW-3300, AFC-600) and classic CLIP system
(AFP-100, AFP-200, AFP-300, AFP-400,
AFC-600, AFP1010, AM2020, and PTW-3300) compatible.
Rotary, decimal addressing (1 – 99 on current classic s
ystems, 1 – 159 on ASIC systems).
Two-wire SLC connection.
Visible LEDs “blink” every time the unit is addressed.
360°-field viewing angle of the visual alarm indicators
(two bicolor LEDs). LEDs
blink green in Normal condition and turn on steady red in Alarm.
Integral communications and built-in device-type identification.
Remote test feature from the panel.
Built-in functional test switch activated by external magnet.

MODEL: PW-300L

LASER SMOKE DETECTOR

Specifications:
Very Intelligent Early Warning (VIEW) smoke detection. Advanced laser light source and patented optical design. Sleek low-profile housing (1.66’742.164 mm height). Analog Addressable communications protocol provides extremely reliable operation proven in millions of worldwide detector installations. Sensitivity to 0.03%/foot. Rotary DECADE address switches. Set 01 – 99 on legacy systems and 01 – 159 on ASIC systems (AFC-600, or PTW-3300).These switches allow quick selection of address without resorting to binary switches, special programmers, or bar coding devices.

Specifications:

Very Intelligent Early Warning (VIEW) smoke detection. Advanced laser light source and patented optical design.
Sleek low-profile housing (1.66’742.164 mm height).
Analog Addressable communications protocol provides extremely reliable
operation proven in millions of worldwide detector installations. Sensitivity to 0.03%/foot.
Rotary DECADE address switches. Set 01 – 99 on legacy systems and 01 – 159 on ASIC systems
(AFC-600, or PTW-3300).These switches allow quick selection of address without resorting
to binary switches, special programmers, or bar coding devices.

SINGLE-ENDED, REFLECTED-TYPE ADDRESSABLE BEAM SMOKE DETECTORS

Specifications:
Transmitter/receiver built into same unit. Six user-selectable sensitivity levels. 16′ to 328′ (use BEAMLRK beyond 230′) protection range. Removable plug-in terminal blocks. Digital display — no special tools required. Built-in automatic gain control compensates for signal deterioration from dust buildup. Optional remote test station. Optional long-range kit (BEAMLRK) for applications in excess of 230′ (70 m). Optional multi-mount kit (BEAMMMK) providing ceiling or wall mount capability with increased angular adjustment. Optional heater kits (BEAMHK and BEAMHKR) for prevention of condensation (not intended to increase or reduce the specified operating temperature).

Specifications:

Transmitter/receiver built into same unit. Six user-selectable sensitivity levels.
16′ to 328′ (use BEAMLRK beyond 230′) protection range.
Removable plug-in terminal blocks.
Digital display — no special tools required.
Built-in automatic gain control compensates for signal
deterioration from dust buildup.
Optional remote test station.
Optional long-range kit (BEAMLRK) for applications in
excess of 230′ (70 m).
Optional multi-mount kit (BEAMMMK) providing ceiling or wall
mount capability with
increased angular adjustment.
Optional heater kits (BEAMHK and BEAMHKR) for prevention
of condensation (not intended
to increase or reduce the specified operating temperature).

MODEL: PMM-301

MINI MONITOR MODULE

Specifications:
Nominal operating voltage	15to32VDC.
Maximum current draw	5.1 mA (LED on).
Maximum operating current	55 A (LED flashing).
EOL resistance	3.9Kohms.
DC voltage	18 to 28 volts
power limited. Ripple voltage Current	0.1 VRMS maximum.
Humidity range	90 mA per module maximum.
Temperature Range	32°F to120°F (0°Cto 49°C).
Nominal operating voltage	10% to 93% noncondensing.
Dimensions	4.5” (11.43 cm) high x4″ (10.16 cm) widex 1.25″ (3.175 cm) deep. Mounts to a 4” (10.16 cm) square x 2.125″ (5.398 cm) deep box.

MODEL: PISO-3

FAULT ISOLATOR MODULE

Specifications:
Operating voltage	15-32VDC (peak).
Current range	5 mA for LED latched in alarm.
Standby current	400 A maximum, plus supervision current. 30mA for 15mS(CMX-1).
Pulsing current	32°F to 120°F (0°C to 49°C).
Temperature range	10% to 93%.
Relative humidity Weight	150grams (5 oz.).

PCM AND PRM SERIES CONTROL AND RELAY MODULES

Specifications:
Operating voltage	15-32VDC (peak).
Current range	5 mA for LED latched in alarm.
Standby current	400 A maximum, plus supervision current. 30mA for 15mS(CMX-1).
Pulsing current	32°F to 120°F (0°C to 49°C).
Temperature range	10% to 93%.
Relative humidity Weight	150grams (5 oz.).
